SKU: AL619

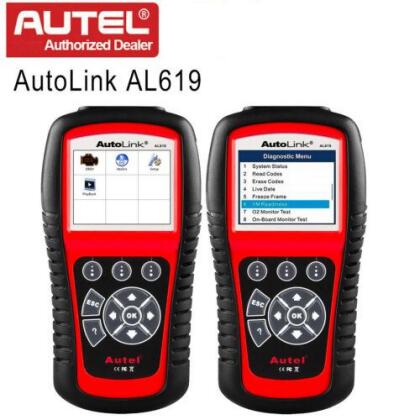

Autel AutoLink AL619 Auto Diagnostic Scan Tool

Autel AutoLink AL619 Features:
Works on most 1996 and newer vehicles (OBDII & CAN)
Diagnoses ABS/ SRS system codes on most 1996 and newer major vehicle models
Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
Turns off Malfunction Indicator Light (MIL) and ABS/SRS warning lights, clears codes and resets monitors
Views freeze frame data
Reads, stores and playbacks live PCM datastream and live sensor data
Graphs data
Retrieves vehicle information (VIN, CIN and CVN)
Troubleshooter code tips guide technicians to the root cause of trouble codes faster
Multilingual menu and DTC definitions – English, Spanish and French
TF memory card for data backup and software update
Internet updatable and upgradable
Prints data via PC
Support languages: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Italian.
All 10 Modes of OBD2 Tests The Autel AL619 comes with complete OBD2 functions including read codes, erase codes, diagnostic trouble codes lookup, view freeze frame data, view live data of custom multiple sensors in text or graph, O2 Monitor Test, On-Board Monitor Test, Module Present, view Vehicle information like VIN, CIN and CVN.
ABS/SRS, OBDII & CAN Diagnostic Scanner The ABS/SRS diagnostic function is used to retrieve and clear codes from the vehicle’s ABS/SRS systems. It also provides the definition of each code to help diagnose problem areas within the systems that may cause the Malfunction Indicator Light (M#IL) to turn on.
Note: AL619 car diagnostic scanner is specifically designed to perform ABS SRS sytems diagnosis and all 10 modes of tests on OBD2/CAN system. And ABS, SRS scan are not universally compatible with all vehicles. To check compatibility, please email us your car model, year and VIN number , then we will check it for you,thank you!
Display DTC Definition on the TFT Color Screen The DTC Lookup function allows user to search definitions of DTC stored in built-in DTC library. For manufacturer specific codes, you need to select a vehicle make on an additional screen to look for DTC definitions.
Autel AutoLINK AL619 Specification:
Display: TFT color display (320 x 240 dpi)
Operating Temp: 0 to 60°C (32 to 140 F°)
Storage Temp: -20°C to 70°C (-4°F to 158°F)
Power: 8.0 to 18.0 V provided via the vehicle battery
Dimensions (LxWxH): 199 mm x 104.5 mm x 37.5 mm(7.83” x 4.11” x 1.48”)
Weight: 280 g (without wire) 484 g (with wire)

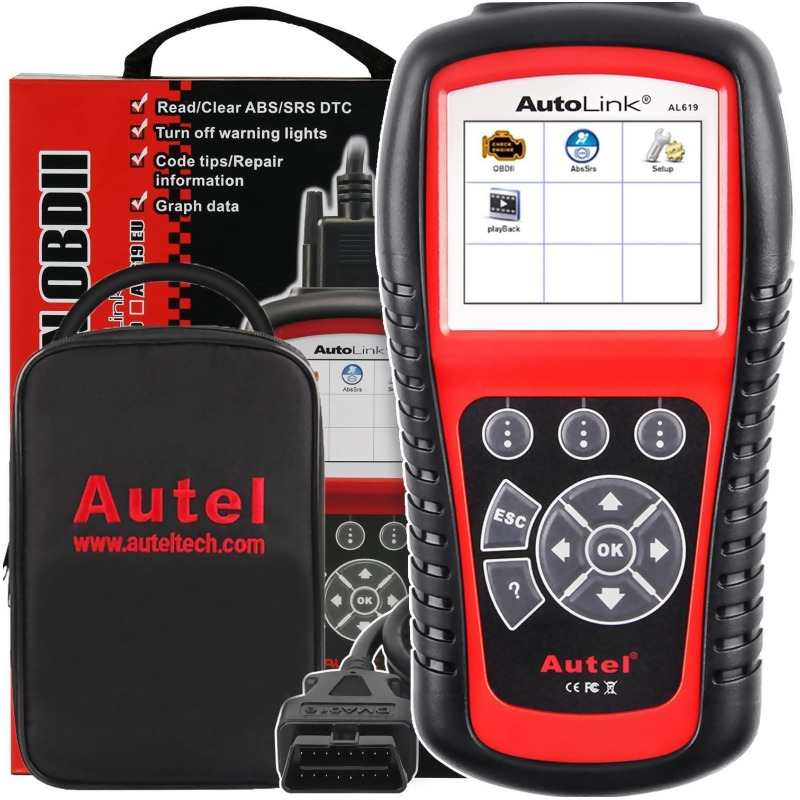

Autel AutoLINK AL619 Package List:
1pc x Autel AL619
1pc x OBD II Cable
1pc x USB Cable
1pc x Carry Bag
1pc x User Manual
1pc x TF Card
