SKU: M300

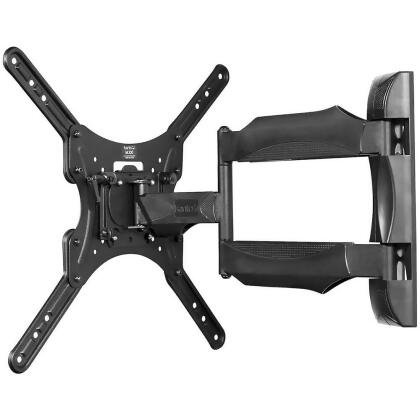

Kanto M300 26 inch - 55 inch Full Motion TV Mount

The M300 is a one-stud solution for those looking to enjoy a wide range of TV viewing angles without taking up too much wall space.For medium-sized TVs this versatile mount has heavy-duty steel arms that support up to 80 pounds and allow for easy tilt pan and swivel adjustments. With a clean powder-coated finish and integrated cable management the M300 is a sleek answer to your TV mounting needs.

SUPPORTSUP TO 80 POUNDS

Constructed out of solid steel and capable of carrying up to 80 pounds you can rest assured that your TV is safe and secure with the M300.

19.6 INCHES OF EXTENSION

The M300 extends a generous 19.6 from the wall to accommodate a variety of TV viewing positions.

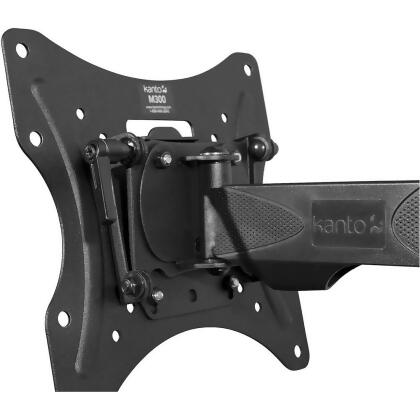

12 DEGREES OF TILT

With the use of a simple tightening mechanism easily adjust the to tilt of your TV 10 forward or 2 backward to suit your viewing needs.

CLEAN FINISH

The M300 is built with solid steel construction and a durable powder coated finish. Magnetic wall plate covers are also provided to give you a clean modern look.

WHITE CABLE SLEEVE (WHITE MODEL ONLY)

For a more discreet appearance the white model comes with a white cable sleeve to match the surrounding area.

designed for TVs 26"-55"

supports up to 80 lbs.

articulating arm positions TV as far as 19-5/8" away from wall

vertical tilt range: +2 to -10 (may vary with size of TV)

swivel range: 135

detachable clips hold cables and cords tightly to mount

stud-mounting required

solid steel construction with powder coated finish

13-1/2"W x 12-1/16"H x 2"D (up to 19-5/8" with arm extended)

weight: 10.1 lbs.

Articulating wall-mount TV bracket

4 Extension brackets

4 M4x25mm bolts

4 M5x15mm bolts

4 M5x25mm bolts

4 M6x15mm bolts

4 M6x25mm bolts

4 M8x20mm bolts

4 M8x35mm bolts

4 M8x50mm bolts

8 M6x12mm bolts

8 M6 nuts

4 Washers

Four 12mm spacers

Four 5mm spacers

4 Lag-bolts

4 Anchors

4 Washers

Allen-key

Wrench

Installation Manual

Wall-Mount Template
